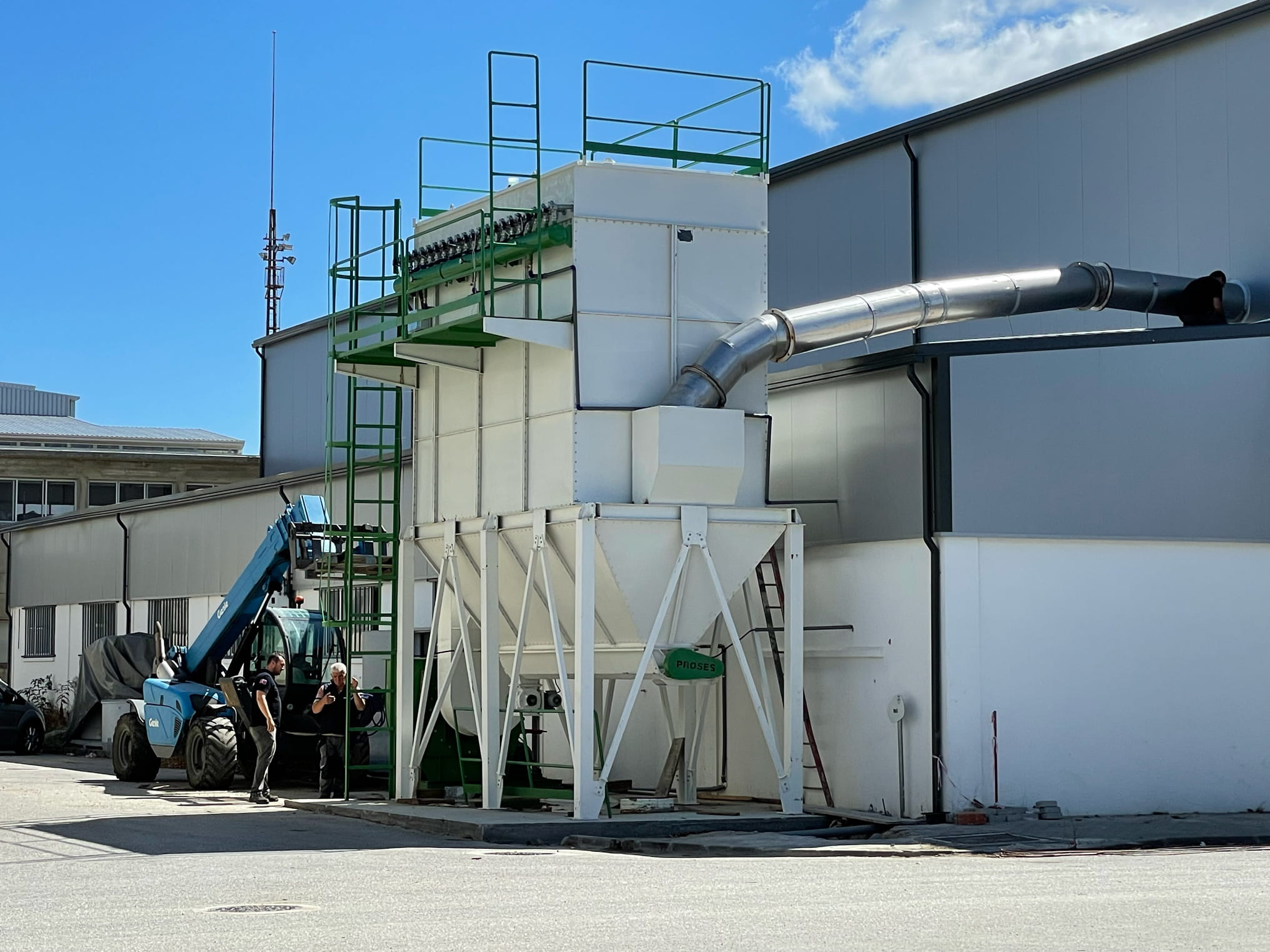

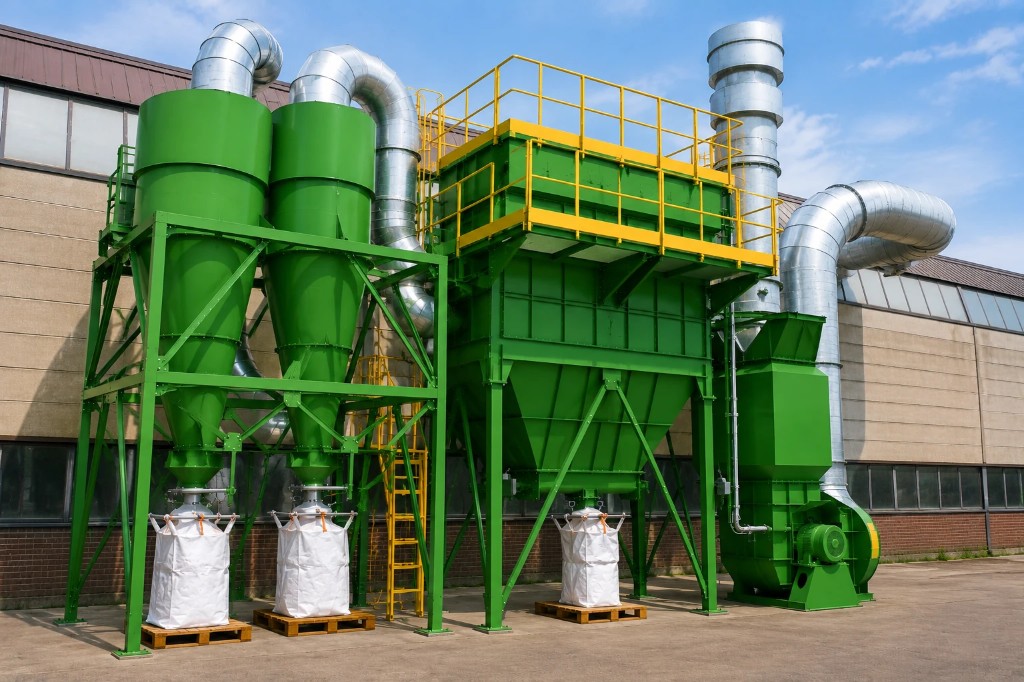

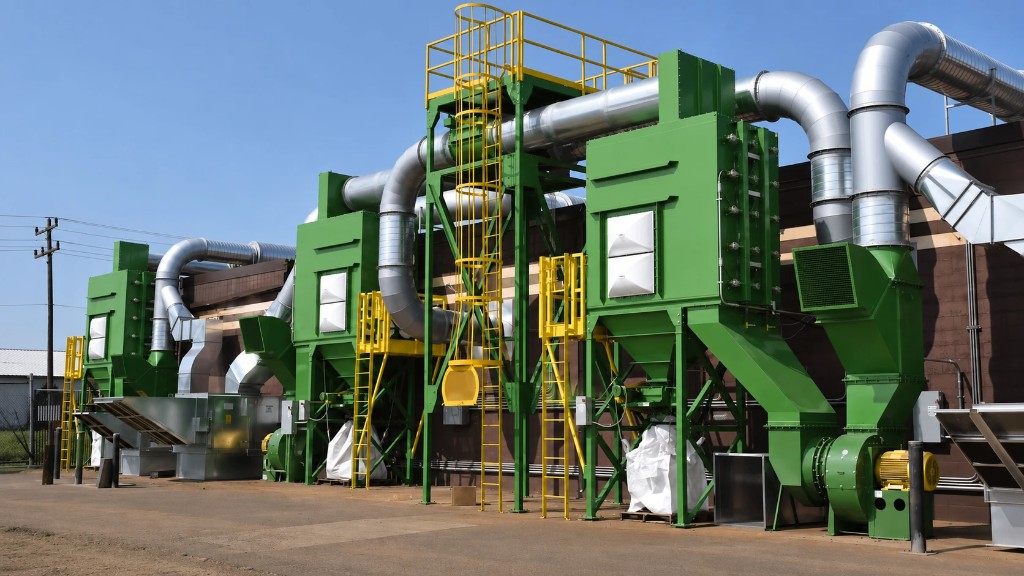

The Pulse Jet Dust Collector is an industrial air filtration unit for capturing fine dust released during mechanical recycling. It is installed on both battery recycling lines and e-waste recovery plants — typically at shredding, crushing, grinding and screening stages, where black mass, PCB scrap and other dry fractions generate airborne particles.
As feedstock is size-reduced to separate metals and plastics, process air carries fine debris. The collector traps these particles on high-efficiency filter media and uses compressed-air jet pulses to clean the filter surface without stopping the line.
Dust from lithium batteries, circuit boards and electronic assemblies should stay inside a closed extraction circuit. Dirty air enters the housing, particles collect on the filter elements, and cleaned air is returned or exhausted. Regular pulse cleaning prevents media blinding and keeps airflow stable under continuous duty.
This protects operators, helps meet emission limits and keeps downstream equipment free of abrasive dust — in battery plants and e-waste plants alike.
Technical Specifications
The Pulse Jet Dust Collector System is designed to capture fine dust and airborne particles generated during battery recycling, e-waste processing, crushing, grinding, screening and material handling.
Dust particles are collected on high-efficiency filter elements, while automatic compressed-air pulses periodically clean the filter surfaces and maintain stable airflow during continuous operation.
| Model | Airflow Capacity | Filter Area | Filter Elements | Fan Motor Power | Dust Inlet | Clean Air Outlet | Approx. Dimensions (W × L × H) |
|---|---|---|---|---|---|---|---|
| PDC-1K | 1,000 m³/h | 15–20 m² | 4–6 cartridges | 3 kW | DN200 | DN250 | 900 × 1,100 × 2,400 mm |
| PDC-2.5K | 2,500 m³/h | 30–40 m² | 6–8 cartridges | 5.5 kW | DN250 | DN300 | 1,100 × 1,400 × 2,800 mm |
| PDC-5K | 5,000 m³/h | 55–75 m² | 8–12 cartridges | 11 kW | DN350 | DN400 | 1,400 × 1,800 × 3,200 mm |
| PDC-10K | 10,000 m³/h | 110–150 m² | 16–24 cartridges | 22 kW | DN500 | DN550 | 1,900 × 2,400 × 4,000 mm |
| PDC-20K | 20,000 m³/h | 220–300 m² | 32–48 cartridges | 37 kW | DN700 | DN750 | 2,500 × 3,200 × 5,000 mm |
| PDC-30K | 30,000 m³/h | 330–450 m² | 48–72 cartridges | 55 kW | DN850 | DN900 | 3,000 × 3,800 × 5,800 mm |
| PDC-40K | 40,000 m³/h | 450–600 m² | 64–96 cartridges | 75 kW | DN1,000 | DN1,050 | 3,500 × 4,400 × 6,500 mm |
| PDC-60K | 60,000 m³/h | 650–900 m² | 96–144 cartridges | 110 kW | DN1,200 | DN1,300 | 4,200 × 5,500 × 7,500 mm |
Standard Technical Features
- Automatic pulse-jet filter cleaning
- High-efficiency cartridge or bag filter elements
- Continuous operation under negative pressure
- Differential pressure monitoring
- Variable-frequency-controlled extraction fan
- Dust-tight welded construction
- Automatic dust discharge system
- Conical dust collection hopper
- Rotary airlock or double-flap discharge valve
- PLC and HMI-based control system
- Inspection and maintenance doors
- Emergency stop and motor protection
- Carbon steel or stainless-steel construction options
System Connections
- Dust-laden air inlet
- Clean-air outlet
- Compressed-air inlet
- Collected dust discharge
- Differential pressure connections
- Fan connection
- Electrical power supply
- Grounding connection
- Inspection and sampling ports
Operating Parameters
| Parameter | Recommended Value |
|---|---|
| Operating airflow | According to connected equipment |
| Dust concentration at inlet | Up to 30 g/Nm³ |
| Recommended filtration velocity | 0.8–1.5 m/min |
| Design pressure drop | 1,200–2,500 Pa |
| Pulse cleaning pressure | 5–7 bar |
| Compressed-air quality | Dry and oil-free |
| Operating temperature | Up to 80°C as standard |
| Operating mode | Continuous |
| System pressure | Negative pressure |
