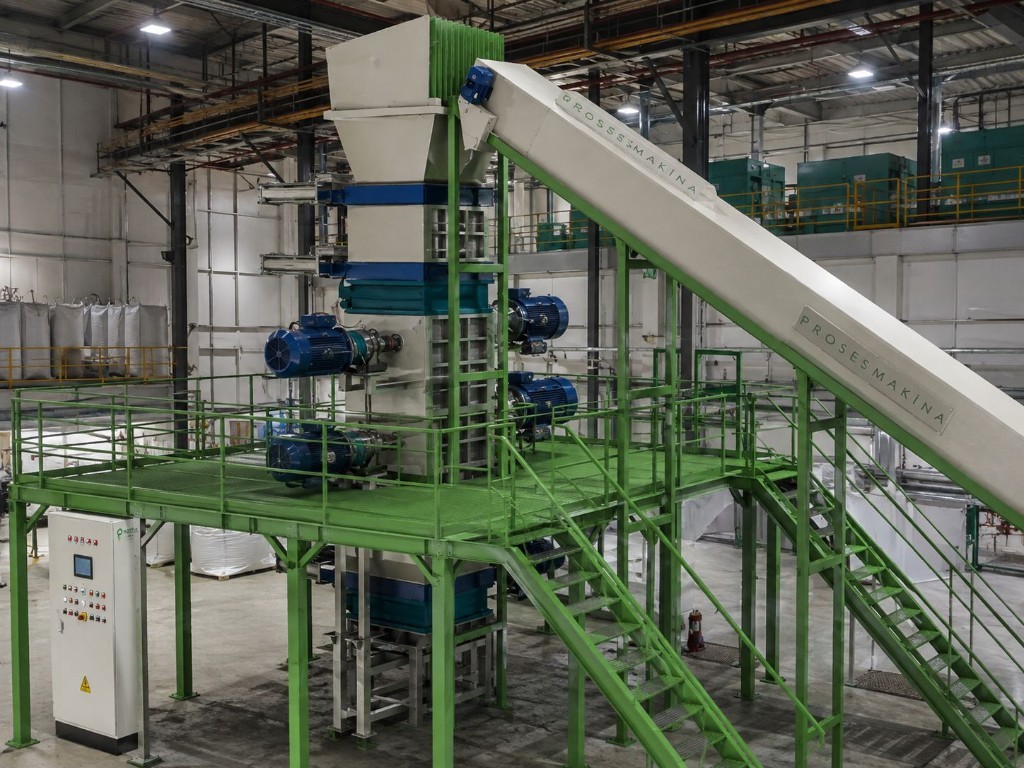

Proses Makina introduces its latest innovation in battery recycling technology: advanced Shredder Systems specifically designed for the mechanical processing of various battery types. Engineered with a strong focus on efficiency, safety, and sustainability, these shredders are set to transform battery recycling operations worldwide.
Designed and operated in a closed vacuum system and inert nitrogen atmosphere, our shredders can process multiple battery types in a single stage. Whether you’re working with lithium-ion, lead-acid, NMC (Nickel-Manganese-Cobalt), or LFP (Lithium-Iron-Phosphate) batteries, the system ensures safe, clean, and effective shredding with minimal risk of contamination or reaction. By breaking batteries down into manageable components, the shredder system enhances material separation and recovery, ensuring that valuable metals and materials are optimally reclaimed.
The result is reduced waste, higher resource utilization, and increased profitability for your recycling operation. Every recycling facility has unique needs. That’s why Proses Makina offers customizable shredder solutions—from throughput capacity to specific battery chemistries. Whether you’re upgrading an existing line or building a new facility, our shredders integrate seamlessly into your process.
Double Shaft Shredder
The Double Shaft Shredder features two parallel shafts equipped with rotating blades that move in opposite directions. This configuration delivers high torque and robust cutting performance, making it ideal for handling a wide variety of battery types and casing materials. These shredders excel in pre-shredding and size reduction, offering both versatility and durability.
Single Shaft Shredder
The Single Shaft Shredder serves as a secondary crusher, ideal for fine pulverization—particularly crucial for battery types like automotive batteries, which contain higher amounts of liquid electrolyte. Equipped with a single rotating shaft and multiple cutting blades, this shredder is perfect for achieving uniform particle size and handling bulkier or tougher materials.
Proses Makina’s Shredder Systems are designed to meet the evolving needs of modern battery recycling. From the mechanical breakdown to the recovery of valuable resources, we provide the technology that empowers your operation—safely, efficiently, and sustainably.
Technical Specifications
The Battery Shredder System is specifically engineered for the safe and efficient size reduction of lithium-ion batteries, battery modules, battery packs and battery manufacturing scrap. The system operates inside a fully enclosed inert atmosphere to minimize fire and explosion risks while maximizing black mass recovery and downstream process efficiency.
| Model | Processing Capacity | Feed Material | Cutting Chamber | Operating Atmosphere | Oxygen Level | Rotor Type | Installed Power | Approx. Dimensions (W × L × H) |
|---|---|---|---|---|---|---|---|---|
| BSS-250 | 250 kg/h | Cells & Small Modules | Twin Shaft | Nitrogen (N₂) | <3% | High Torque | 45 kW | 3,000 × 2,500 × 2,700 mm |
| BSS-500 | 500 kg/h | Modules | Twin Shaft | Nitrogen (N₂) | <2% | High Torque | 75 kW | 3,800 × 3,000 × 3,000 mm |
| BSS-1000 | 1,000 kg/h | Modules & Packs | Twin Shaft | Nitrogen (N₂) | <2% | High Torque | 110 kW | 4,800 × 3,500 × 3,400 mm |
| BSS-2000 | 2,000 kg/h | EV Battery Packs | Twin Shaft | Nitrogen (N₂) | <2% | Heavy Duty | 160 kW | 6,000 × 4,000 × 4,000 mm |
| BSS-5000 | 5,000 kg/h | EV Packs & Production Scrap | Twin Shaft | Nitrogen (N₂) | <2% | Heavy Duty | 250 kW | 8,000 × 5,000 × 4,800 mm |
Standard Technical Features
- Fully gas-tight shredding chamber
- Closed-loop nitrogen inerting system
- Twin-shaft high-torque shredder
- Double knife gate valve feeding system
- Double knife gate valve discharge system
- Continuous oxygen monitoring
- Automatic nitrogen injection
- Oxygen interlock protection
- Automatic emergency shutdown
- Pressure monitoring
- Explosion relief design
- Fire detection system
- Automatic fire suppression
- PLC & Touchscreen HMI
- Variable rotor speed (VFD)
- Heavy-duty wear-resistant blades
- Sealed bearing arrangement
- Low dust emission
- Continuous industrial operation
Battery Safety System
- Fully enclosed process
- Nitrogen atmosphere operation
- No direct contact with ambient air
- Oxygen concentration maintained below 2%
- Double air-lock feeding chamber
- Double air-lock discharge chamber
- Continuous O₂ monitoring
- Continuous pressure monitoring
- HF gas monitoring (optional)
- VOC monitoring (optional)
- Automatic nitrogen replenishment
- Emergency nitrogen flooding
- Explosion-resistant construction
Operating Conditions
| Parameter | Recommended Value |
|---|---|
| Feed Material | Li-ion Cells, Modules & Packs |
| Feed Size | Up to Complete EV Battery Modules |
| Operating Atmosphere | Nitrogen |
| Oxygen Level | <2% |
| Chamber Pressure | Slight Negative Pressure |
| Rotor Speed | Variable |
| Construction Material | Heavy Duty Carbon Steel |
| Operation Mode | Continuous |
System Connections
- Feed conveyor
- Double knife gate valve
- Nitrogen inlet
- Oxygen analyzer
- Pressure sensor
- Product discharge
- Double discharge air-lock
- Dust extraction connection
- HF gas outlet
- Emergency nitrogen connection
- PLC control cabinet
Typical Applications
- Lithium-ion Battery Recycling
- EV Battery Recycling
- Battery Manufacturing Scrap
- Battery Module Recycling
- Battery Pack Recycling
- Black Mass Production
- ESS Battery Recycling
- Consumer Battery Recycling
